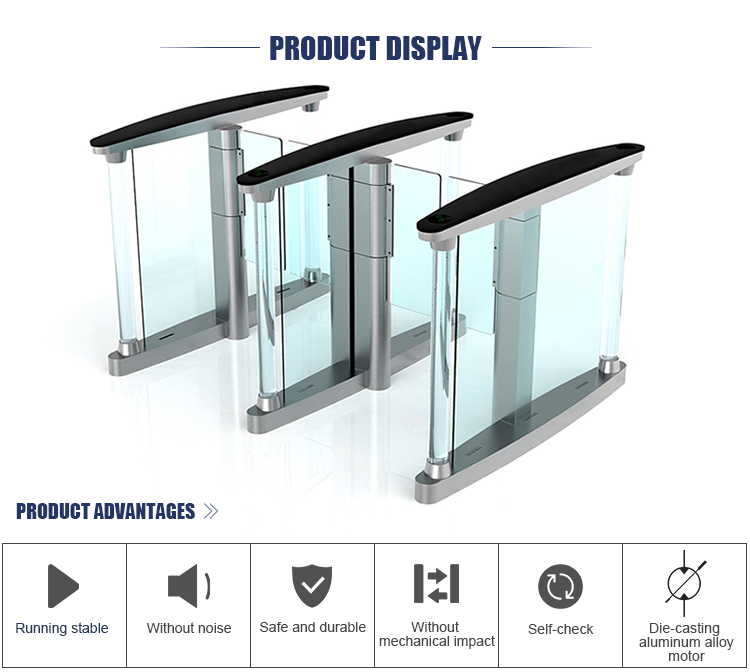

Product displayMechanism technology Powerful on-line intelligent control mode, facilitating you:A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passi
Powerful on-line intelligent control mode, facilitating you:
A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.

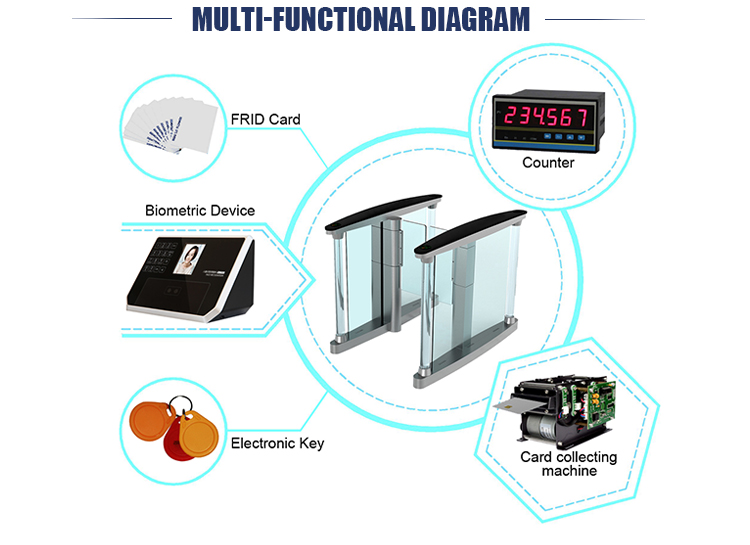

C) To read card with multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To selct a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
16) Resetting automatically. after reading card ,if the passer didn’t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.
1. 10 Pairs Infrared Sensors,anti-tag after, anti-hit against
2. RS485 Communication
3. DC Brushless motor
Technical Parameters
1 | Power | AC220V±10V,110V±10V,50/60HZ |
2 | Operating Temperature | -45℃-60℃ |
3 | Relative Humidity | ≤95%, No Condensation |
4 | Passage Width | 600mm( 1000mm optional) |
5 | Passing Speed | Normally open-50persons/min; Normally closed-50persons/min |
Manufacturing Technique | CNC laser cutting | |
7 | Motor | DC Brushless motor, 140W/24V |
8 | Gate Opening and Closing time | ≤ 0.4S |
9 | Infrared Sensors | 10 Pairs |
10 | Working environment | indoor and outdoor(added the rainshed ) |
11 | Motor Operation Speed | 1600R/Min |
12 | Communication Distance | ≤1200M |
13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
14 | Communication Connection | RS485 Communication |
Barrier Material | Acrylic glass, SS304 and so on | |
15 | Material | Stainless steel 304,thickness is no less than 1.5mm |
16 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
17 | Protect Level | IP54 |
18 | Size | 1400*280*985mm |
19 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like |

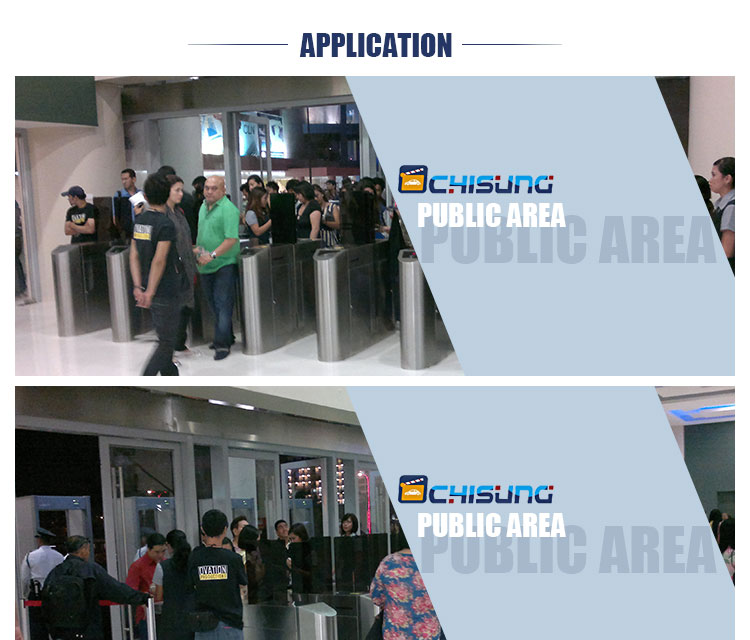

20 | Operation Place | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
