CSEYZ300 Single Lane Flap Turnstile Gate

Product DescriptionCSEYZ300 The CSEYZ300 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.The CSEYZ300 is a single lane flap bar

Product Description
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
CSEYZ300

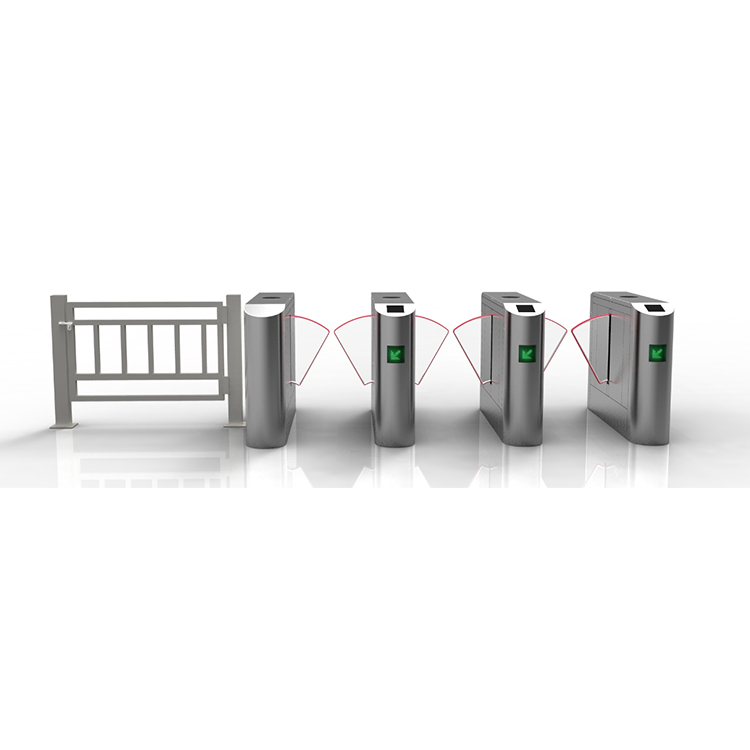

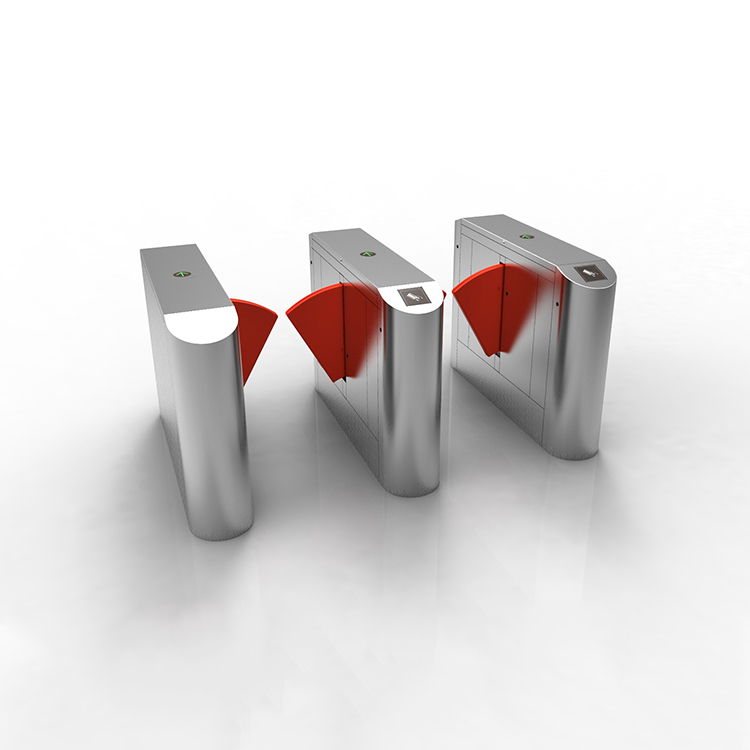

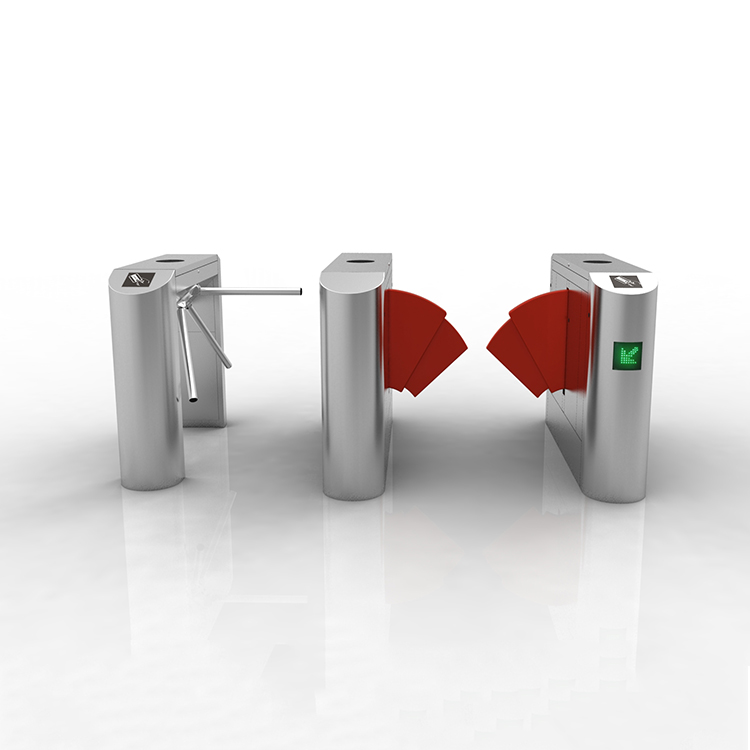

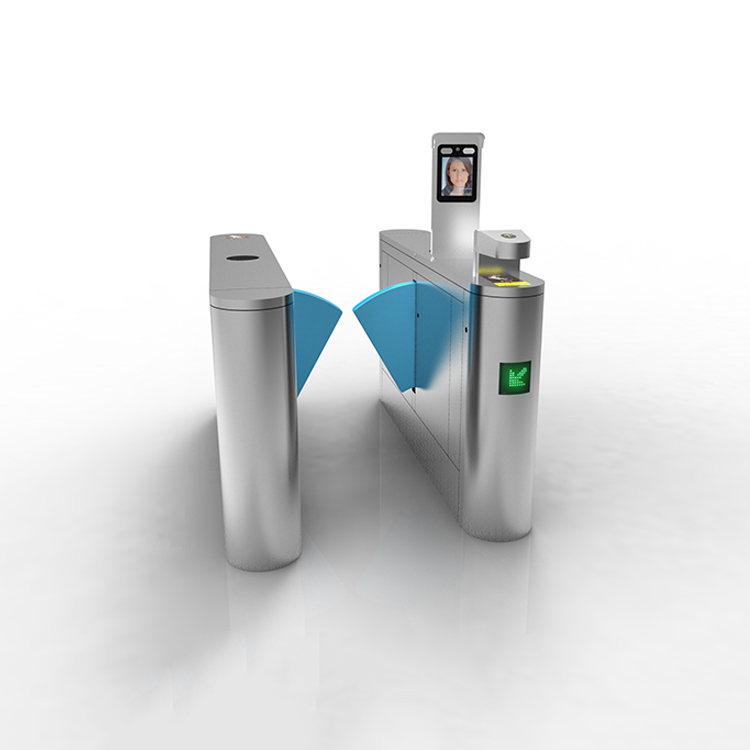

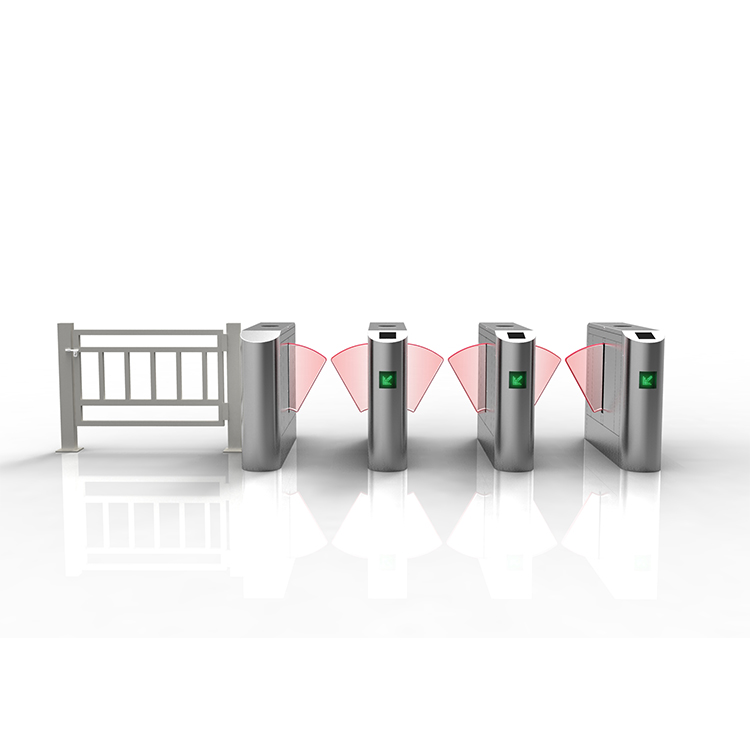

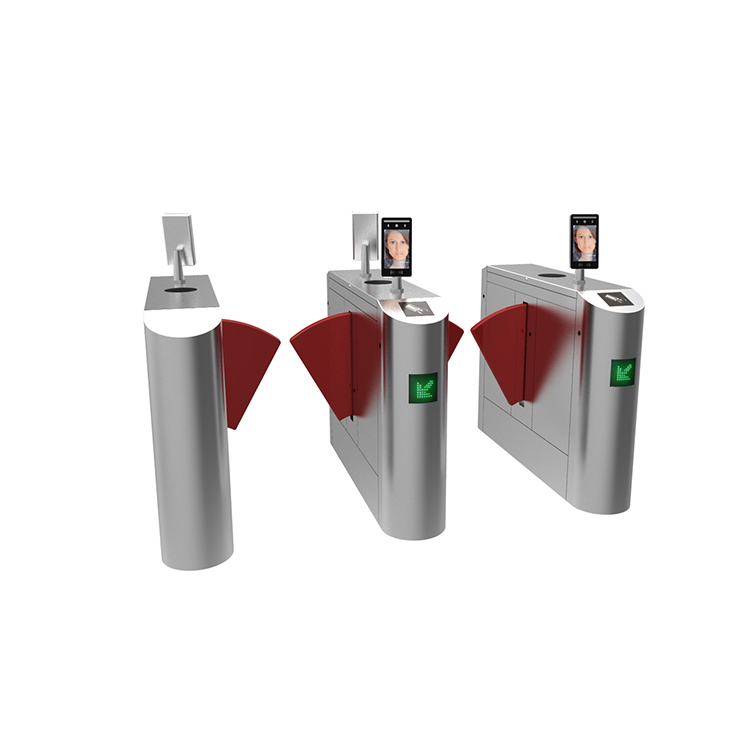

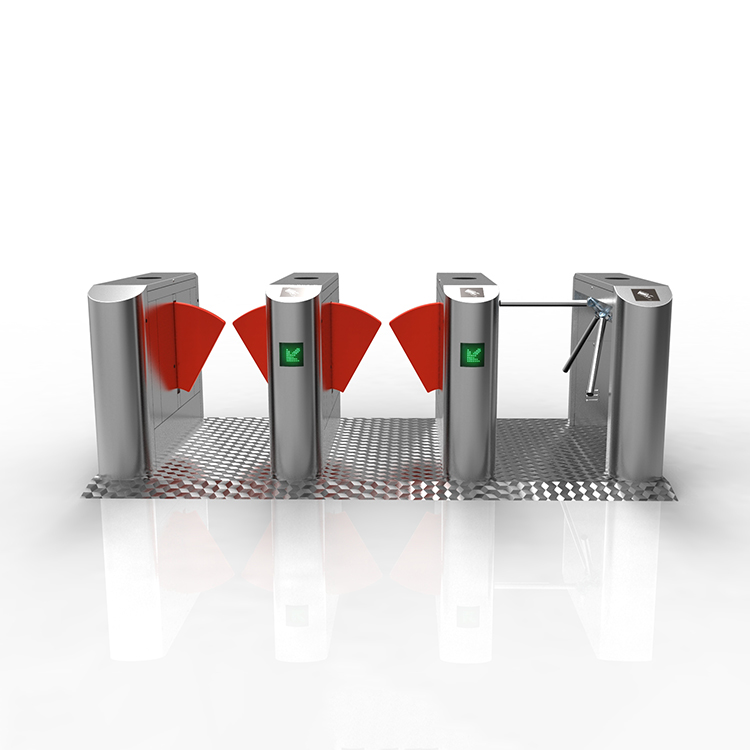

The CSEYZ300 single lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume.
The CSEYZ300 is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes CSEYZ300 highly durable.
CSEYZ300 flap barriers are normally held in a locked position, thus denying access to the secured side. Upon CSEYZ300’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.
During emergencies the barriers automatically retract upward, thereby avoid users being trapped.A battery for power outage safety can be installed for retracting the barrier automatically.
CSEYZ300 provides both security and convenient space, all in a very durable and elegant compact design.
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Function&Features
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Features
Reliability
• SUS304 stainlesssteel casework ensure long-lasting durability.
• High quality electrical components.
Safety Features
• Barriersretract automatically during emergencies.
• Barriersretract automatically during power outage with battery installed.
• Allsmooth finishing. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration
• CSEYZ300 plus series is already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
CSEYZ300 plusseries and associated access control readers are all factory-tested prior to shipping.
• WE provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry.
Packing & Delivery
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
carton/wooden box

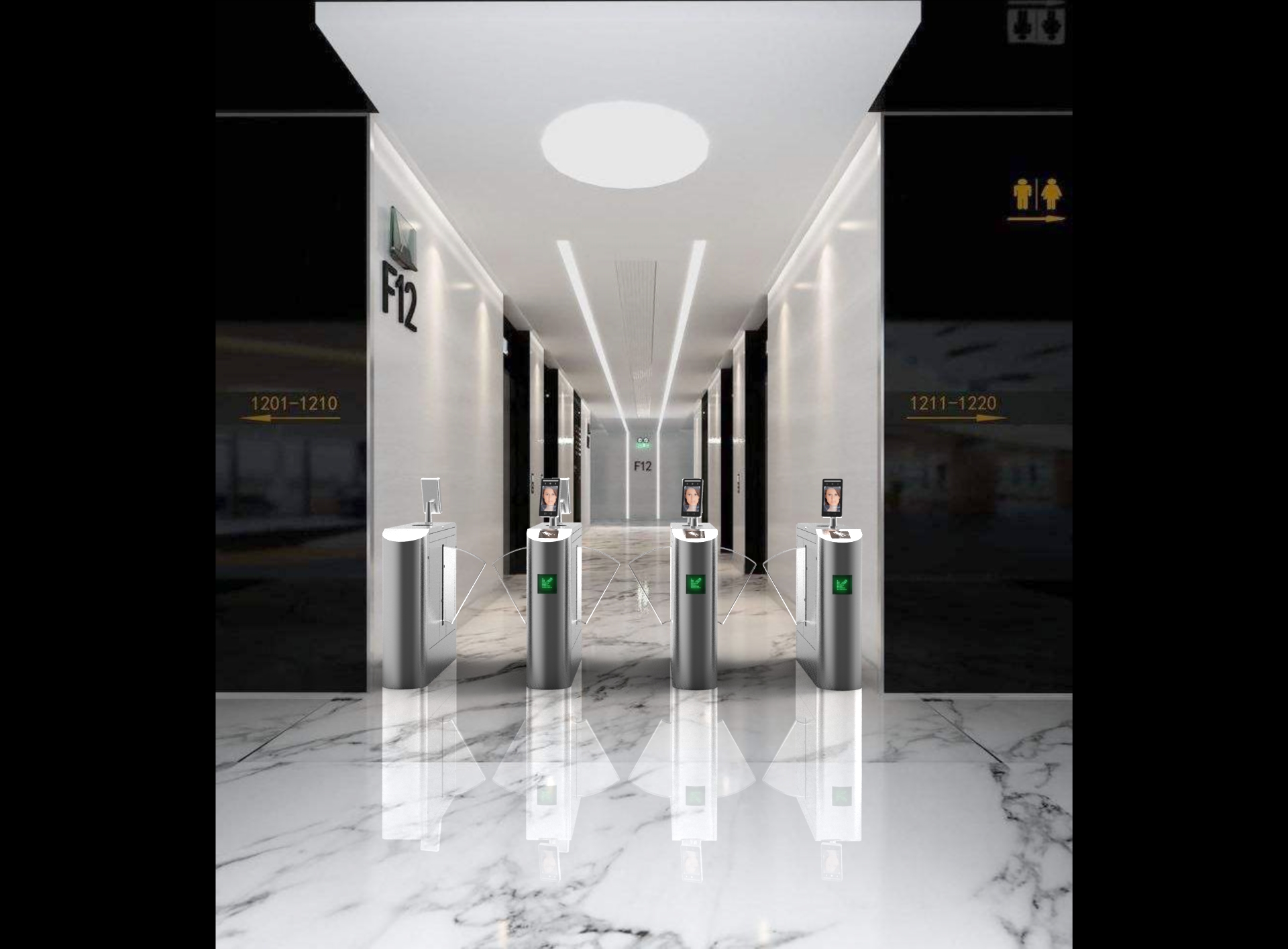

Application
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

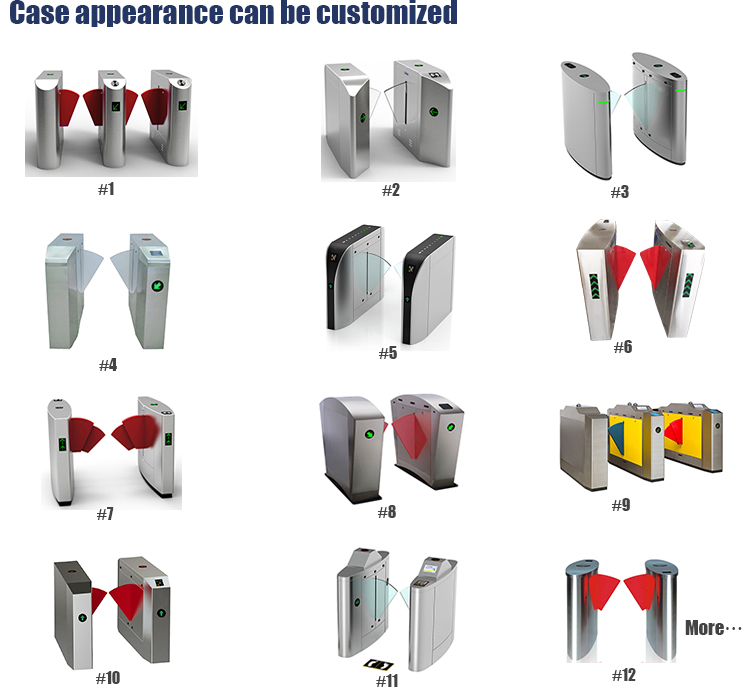

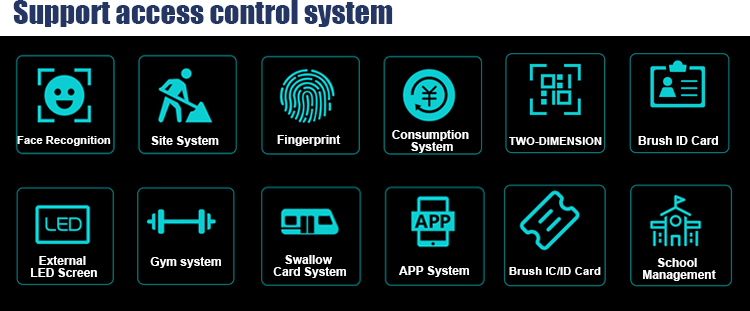

Custom & System
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong


Specification
Power requirements
AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature
-28℃~60℃
Working humidity
5%~80%
Working environment
Indoor/outdoor (if sheltered)
Speed of throughput
RFID
Maximum 30/ minute

Fingerprint
Maximum 25/ minute
Lane width(mm)
600mm
Dimensions(mm)
L=1200,W=280,H=980
Dimension with packing(mm)
L=1300,W=400,H=1100
Net weight(kg)
85
Weight with packing(kg)
95
LED indicator
Y
Cabinet material
SUS304 Stainless Steel
Sensor
4 pairs
Barrier material
Acrylic(18mm)/PMMA(thickness 50mm, red/blue optional)
Barrier movement
Retracting
Emergency mode
Y
Security level
Medium
MCBF
3 million
Options/Accessories
Counter, SUS316 Cabinet and Lid, Remote Control,Access Control
Transmission Variant
Belt transmission
Housing Thickness
1.2*1.0mm(Top*Housing)
Enclose Rating
IP54
