CSEYZ305 Baffle Gate Flap Barrier Turnstile
Product displayAdvanced technologyAppliction

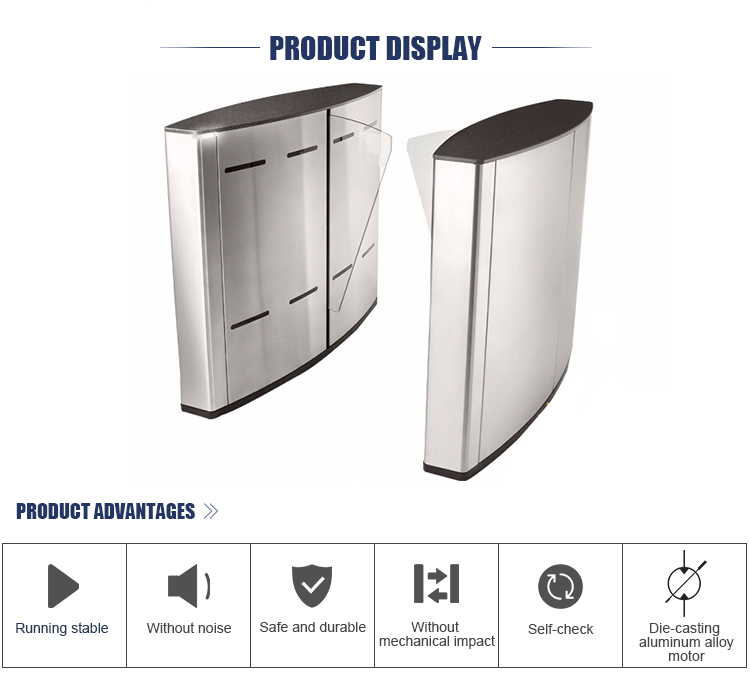

Product display
Advanced technology
Appliction
New Products Ip54 Nice Stainless Steel Driveway Gate Flap Barrier
Power | AC220V±10V,110V±10V,50/60HZ; |
Operating Temperature | -45℃-60℃ |
Relative Humidity | ≤95%, No Condensation |
Passage Width | 550mm( 900mm optional) |
Passing Speed | Normally open-50persons/min; Normally closed-50persons/min |
Box Length | 1600 mm |
Manufacturing Technique | CNC laser cutting |
Weight | 70kg |
Motor | DC Brush motor |
Gate Opening and Closing time | ≤ 0.4S |
Infrared Sensors | 6-10 Pairs |
Working environment | indoor and outdoor(added the rainshed) |
Motor Operation Speed | 1600R/Min |
Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
Communication Connection | Without RS485 Communication |
Barrier Material | Acrylic glass, SS304 and so on |
Material | Stainless steel 304,thickness is no less than 1.3mm |
Running Life | 3--5 Million(Continuous Opening and Closing Operation) |
Protect Level | IP54 |
Size | 1600*300*980mm |
Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like |

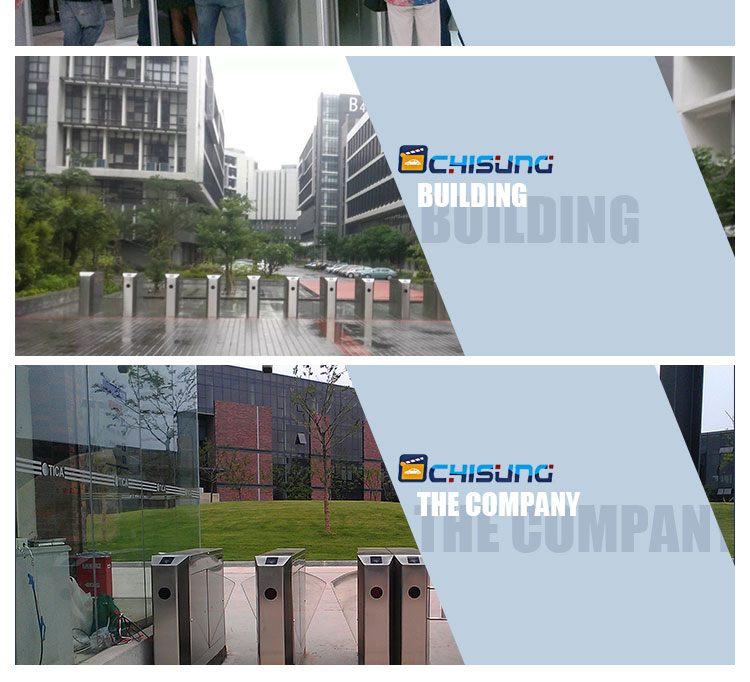

Operation Place | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
