CSSBZB90 Cost Effective Glass Barrier Supermarket Swing Gate

Product CertificationThe CSSBZB90 swing barrier turnstile is an elegant high performance entrance control system designed for high-traffic volume.CSSBZB90The CSSBZB90 is a single lane swing barrier tu

Product Certification
The CSSBZB90 swing barrier turnstile is an elegant high performance entrance control system designed for high-traffic volume.
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
CSSBZB90
The CSSBZB90 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power.
It is made of stainless steel which makes CSSBZB90 highly durable.
    CSSBZB90 barriers are normally held in a locked position, thus denying access to the secured side. Upon CSSBZB90 plus’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.
    CSSBZB90 provides both security and convenient space, all in a very durable and elegant compact design.


Features

Reliability•SUS304 stainless steel case ensures long-lasting durability •High quality electrical components Safety Features. •All smooth finishing. No exposed screws.Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader IntegrationCSSBZB90  plus series already integrated with customers’ preference for either card or fingerprint access control reader which greatly reduces installation time & expenses. •CSSBZB90 series and associated access control readers have passed the factory test before shipment.We provide the plug&play device with the lowest price in the whole industry.
Simplification•Simplify structure and connection, easy to maintain.
•Industrial Control board,durable and easy to operate.
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

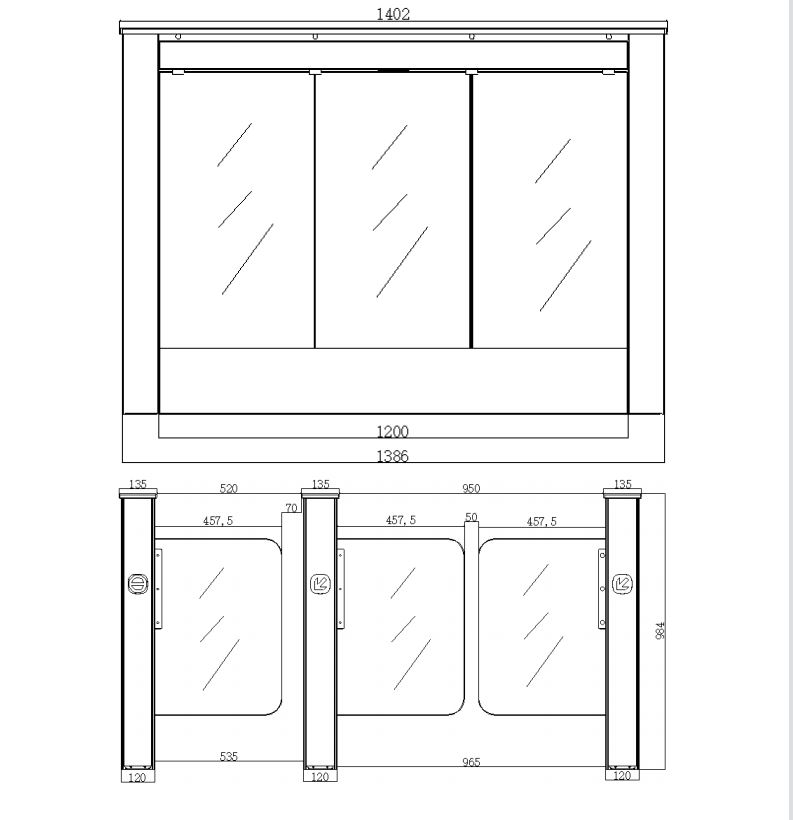

Dimensions (mm)
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

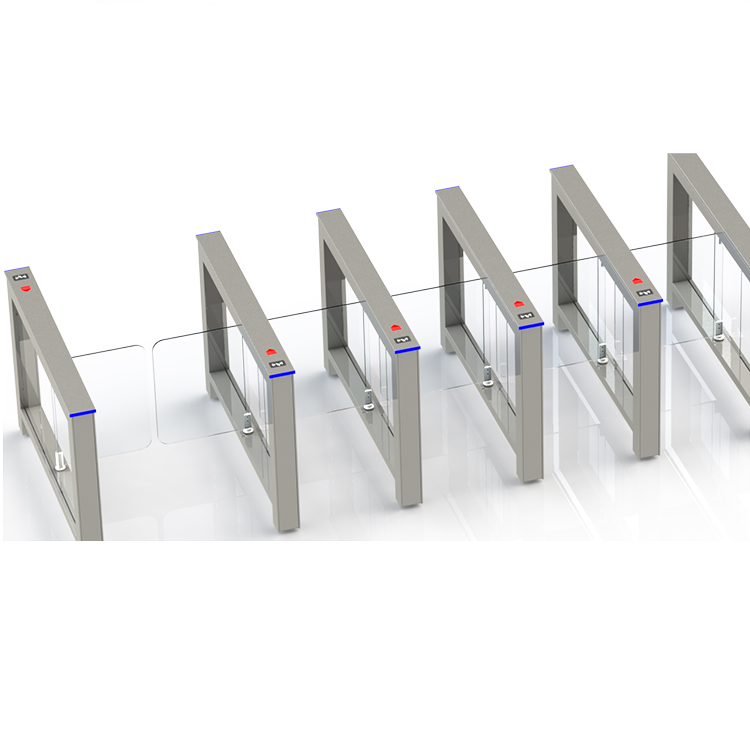

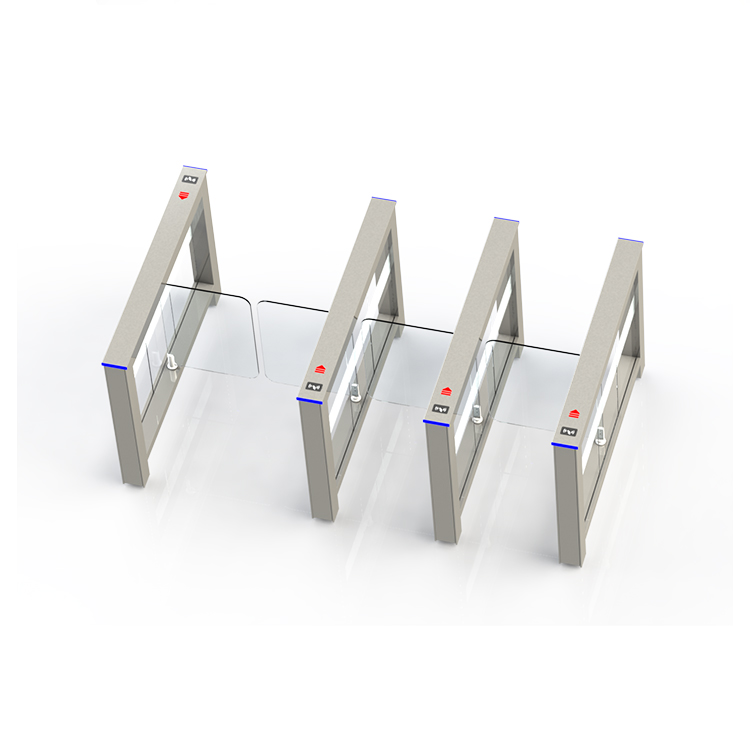

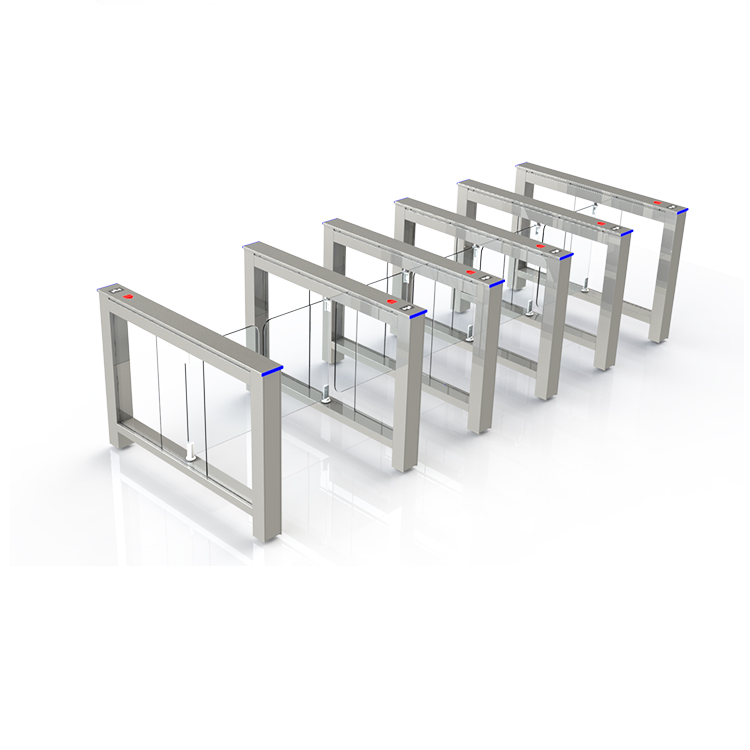

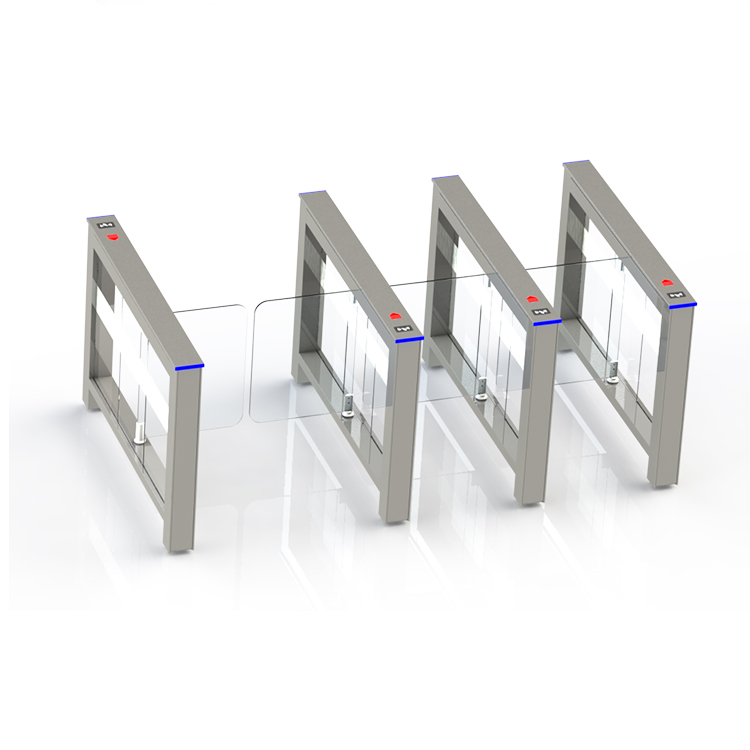

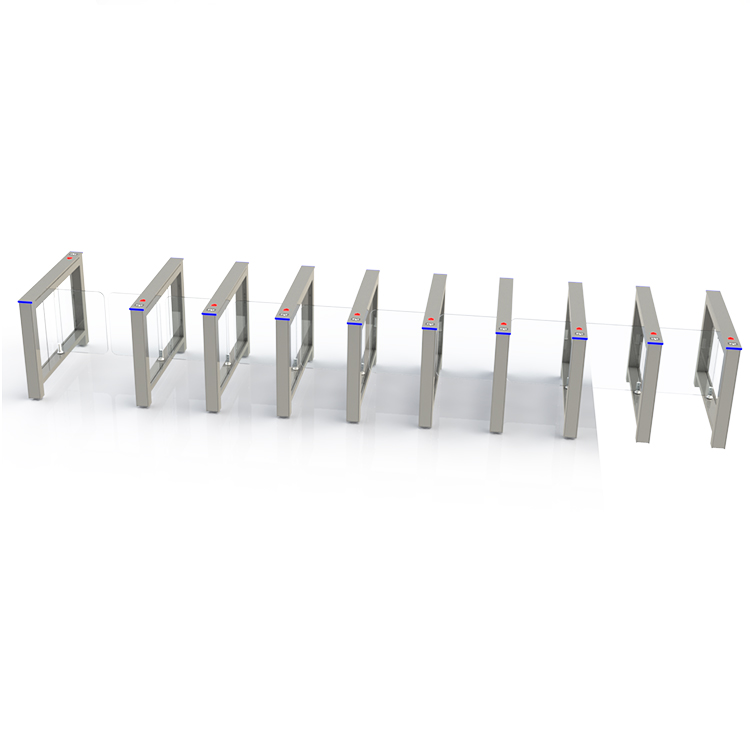

Product Display
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

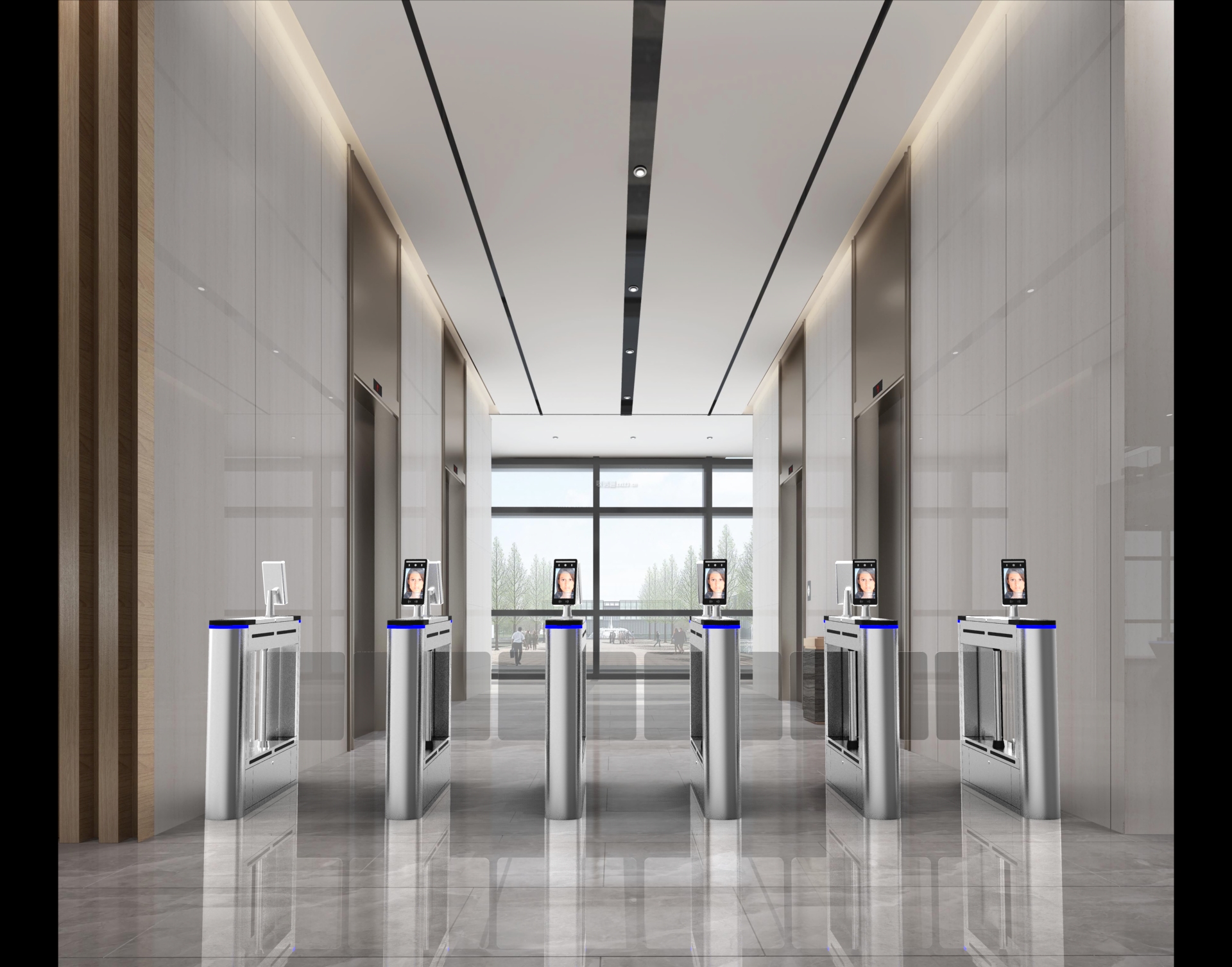

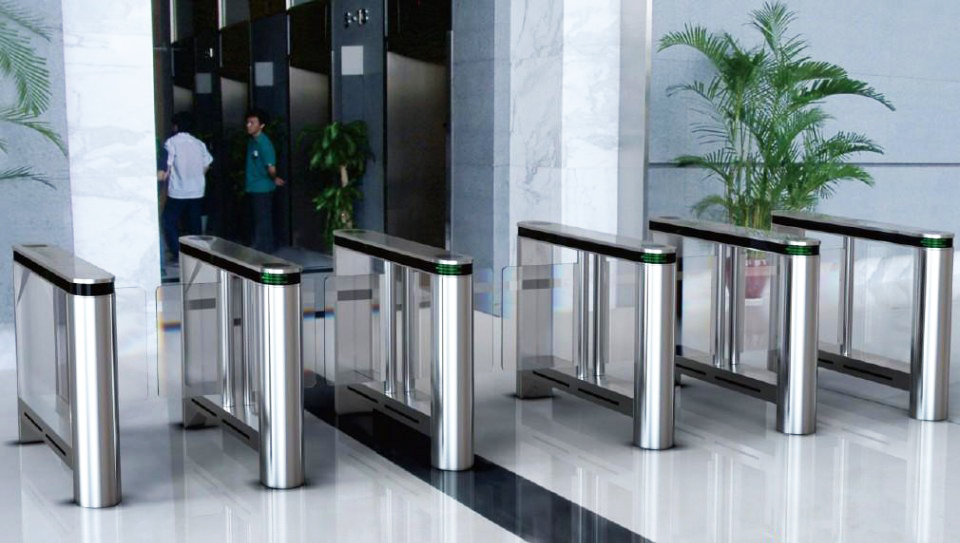

Application
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong


Specification
Product name
New Arrival SUS304 Stainless Steel Speed Pass Swing Gate
Power requirements
110V-240V AC, 50/60Hz
Working temperature
-30℃~75℃
Working humidity
less than 90%RH (non-condensing)
Working environment
Indoor
Speed of throughput
RFID
Maximum 30/ minute

Fingerprint
Maximum 25/ minute
Lane width(mm)
standard 520mm/widened 950mm
Dimensions(mm)
L=1402, W=135, H=984
Cabinet material
SUS304 Stainless Steel,thickness 1.00±0.05mm
Barrier material
Acrylic Glass or Tempered Glass
Barrier movement
Swing
Emergency mode
Y
Security level
Medium
