CSEBZ208 Support Rfid/ Fingerprint/ Facial Bridge Swing Turnstile Gate

Product CertificationThe CSBZ208 swing barrier turnstile is an elegant high performance entrance control system designed for high-traffic volume.CSEBZ208The CSEBZ208 is a single lane swing barrier tur

Product Certification
The CSBZ208 swing barrier turnstile is an elegant high performance entrance control system designed for high-traffic volume.
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
CSEBZ208
The CSEBZ208 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power.
It is made of stainless steel which makes CSBZ208 highly durable.
    CSBZ208 barriers are normally held in a locked position, thus denying access to the secured side. Upon CSBZ208 plus’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.
    CSBZ208 provides both security and convenient space, all in a very durable and elegant compact design.


Features

Reliability•SUS304 stainless steel case ensures long-lasting durability •High quality electrical components Safety Features. •All smooth finishing. No exposed screws.Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration•CSEBZ208  plus series already integrated with customers’ preference for either card or fingerprint access control reader which greatly reduces installation time & expenses. •CSEBZ208 series and associated access control readers have passed the factory test before shipment.We provide the plug&play device with the lowest price in the whole industry.
Simplification•Simplify structure and connection, easy to maintain.
•Industrial Control board,durable and easy to operate.
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

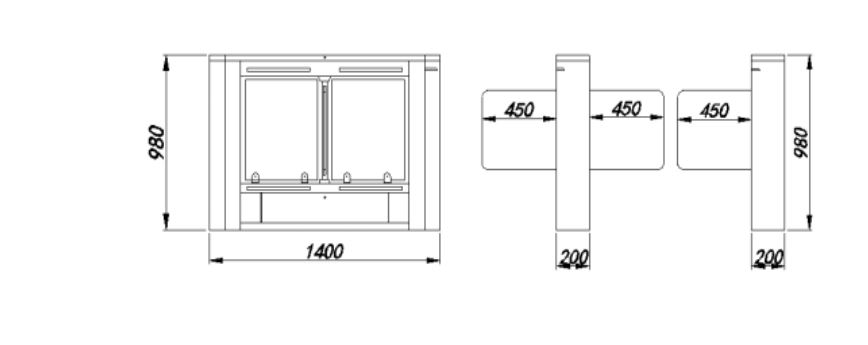

Dimensions (mm)
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong

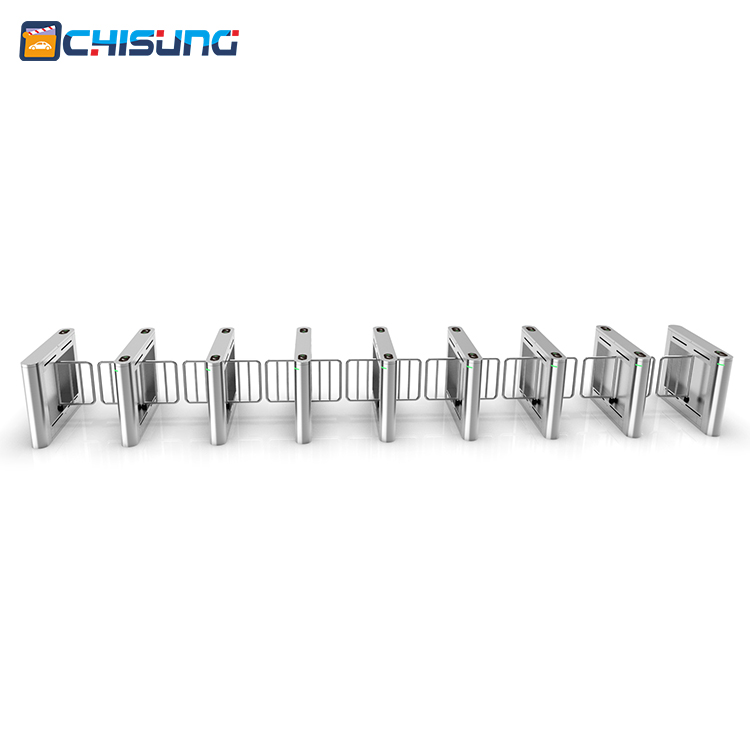

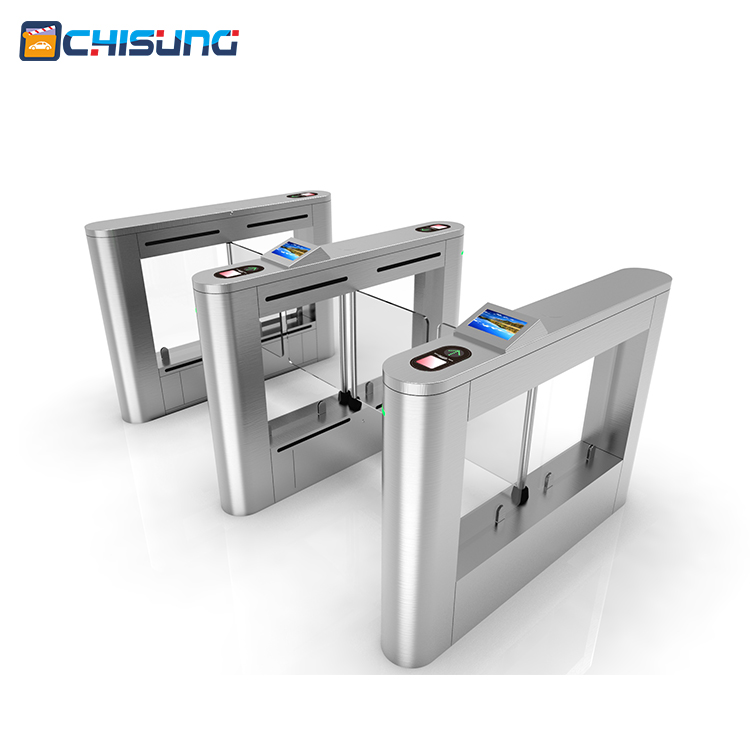

Product Display
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Application
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong


Specification
Product name
High Quality Electric Stainless Steel Barrier Plane Round Arc Angle Swing Gate
Power requirements
AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature
-28℃~60℃
Working humidity
20%-95% (Non-condensing)
Working environment
Indoor
Speed of throughput
RFID
Maximum 30/ minute

Fingerprint
Maximum 25/ minute
Lane width(mm)
550-900
Dimensions(mm)
L=1400, W=200, H=980
Dimension with packing(mm)
L=1500, W=300, H=1100
Net weight(kg)
120
Weight with packing(kg)
150
Cabinet material
SUS304 Stainless Steel
Barrier material
Acrylic Glass or Tempered Glass
Barrier movement
Swing
Emergency mode
Y
Security level
Medium
MCBF
5 million


Packing & Delivery
Chisung Intelligence Technology (Shenzhen) Co., Limited | China Guangdong
Wooden box
