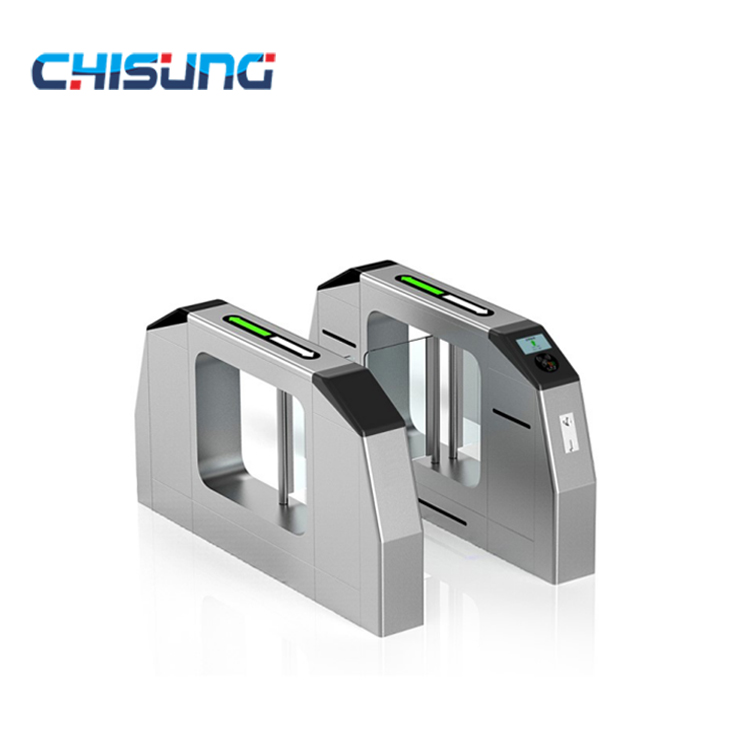

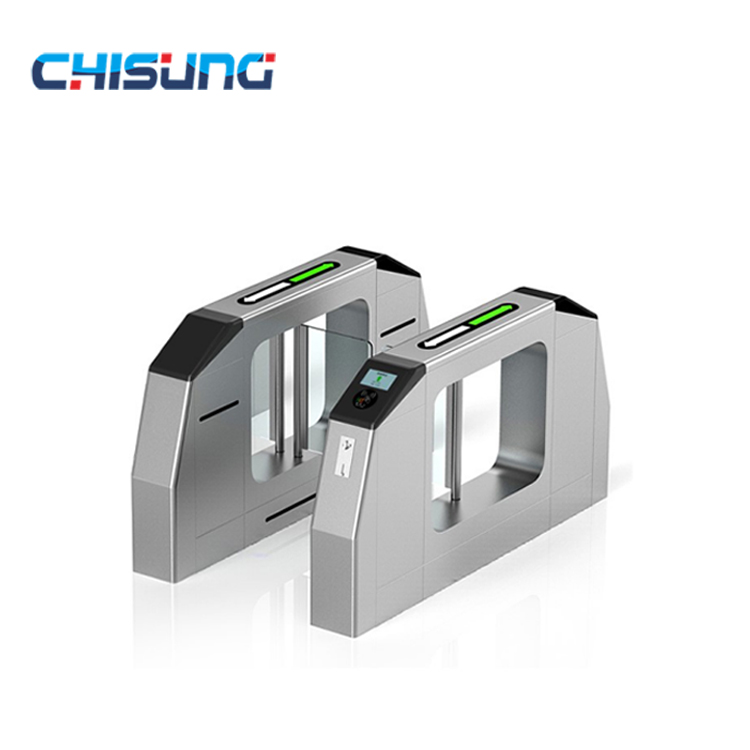

CSEBZ211 Chisung Swing Turnstile Gate
Standard Machanism and equipments1. High Quality DC Brushless Motor/DC Brush motor Optional, no maintenance all the of life, No Attrition, Low-noise, High Intelligence2.3 or 4 pairs infrared sensors f
Standard Machanism and equipments
1. High Quality DC Brushless Motor/DC Brush motor Optional, no maintenance all the of life, No Attrition, Low-noise, High Intelligence
2.3 or 4 pairs infrared sensors for protection
3. House length is 1200MM
Product Description
| 1.Technical Parameters | |
| Power | AC220V±10V,50/60HZ; |
| Operating Temperature | -45℃-60℃ |
| Relative Humidity | ≤95%, No Condensation |
| Passage Width | 600mm( 1000mm optional) |
| Passing Speed | Normally open-35persons/min; Normally closed-35persons/min |
| Manufacturing Technique | CNC laser cutting |
| Motor | DC motor |
| Infrared Sensors | 3-6 Pairs |
| Working environment | indoor and outdoor(added the rain shed ) |
| Barrier Material | Acrylic glass, SS304 and so on |
| Material | Stainless steel 304,thickness is no less than 1.3mm |
| Running Life | 3--5 Million(Continuous Opening and Closing Operation) |
| Protect Level | IP54 |
| Size | 1600*300*985mm |
| Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like |
| Operation Place | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
