CSBZ202 Automatic Turnstile Swing Gate
Product displayMechanism technology
Product display

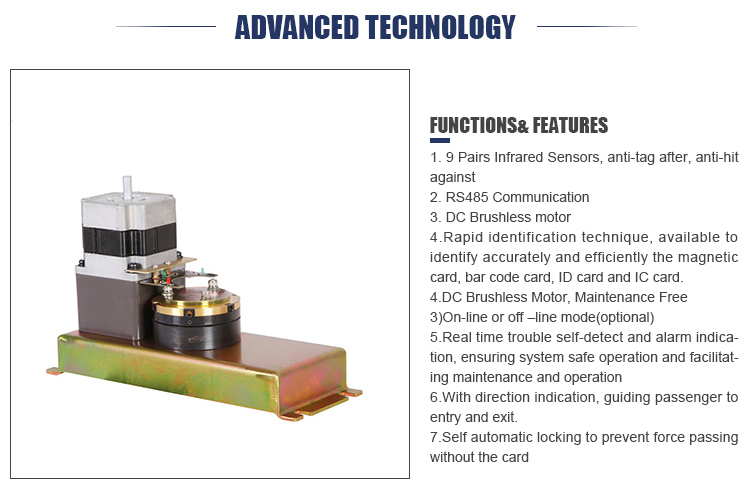

Mechanism technology
Product Description
1 | Power | AC220V±10V,50/60HZ; |
2 | Operating Temperature | -45℃-60℃ |
3 | Relative Humidity | ≤95%, No Condensation |
4 | Passage Width | 600mm( 1000mm optional) |
5 | Passing Speed | Normally open-50persons/min; Normally closed-50persons/min |
6 | Manufacturing Technique | CNC laser cutting |
7 | Motor | DC Brushless motor, 140W/24V |
8 | Gate Opening and Closing time | ≤ 0.4S |
9 | Infrared Sensors | 10 Pairs |
10 | Working environment | indoor and outdoor(added the rainshed ) |
11 | Motor Operation Speed | 1600R/Min |
12 | Communication Distance | ≤1200M |
13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
14 | Communication Connection | RS485 Communication |
Barrier Material | Acrylic glass, SS304 and so on | |
15 | Material | Stainless steel 304,thickness is no less than 1.5mm |
16 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
17 | Protect Level | IP54 |
18 | Size | 1400*280*985mm |
19 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like |
20 | Operation Place | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management, Special Access Control |
