Model | CSETSM02 |
Power Supply | AC220V±10V 50HZ,AC110V±10V, 60Hz |
Power supply voltage | DC24V |
Features | Solenoid and electromagnet structure. |
Drive Signal | Input Connection :+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |

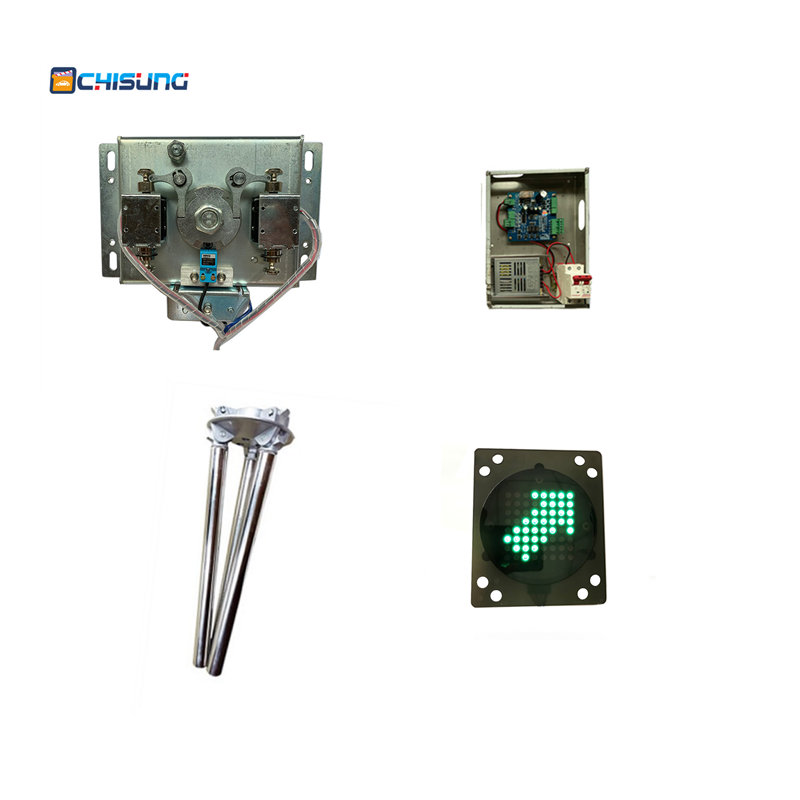

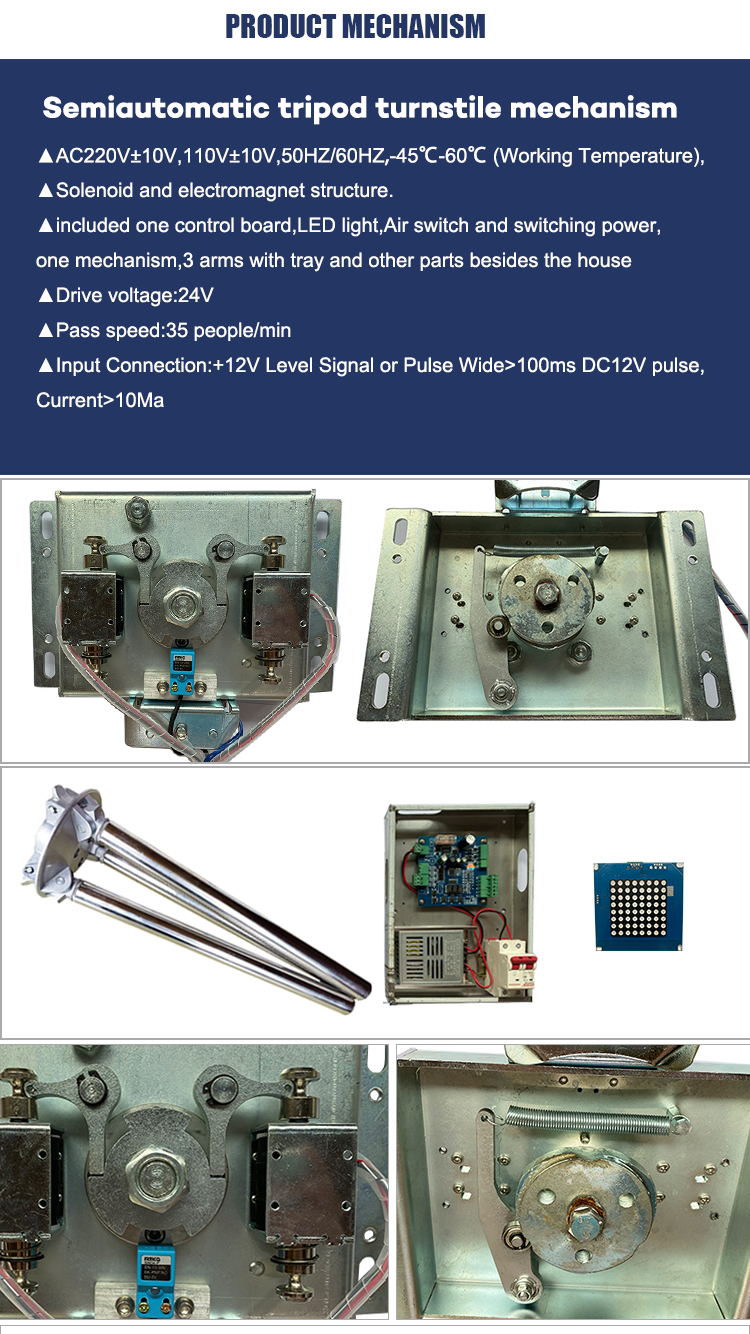

Type | Semiautomatic tripod turnstile mechanism |
Arm length | 500mm |
working environment | indoor, outdoor |
speed | 35people / min |
Normal life | 2-3 millions times，According to the use environment |

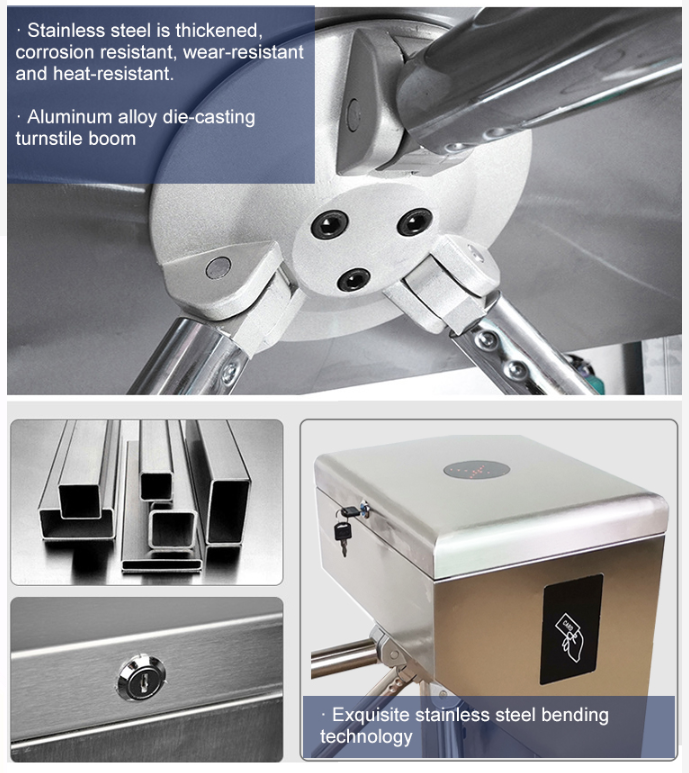

Material | Aluminum tray;
Stainless steel 3 arms;
Alloy steel tripod hub |
Safety Features | Tripod-arms unlock & drop during emergencies /power loss |
operating modes | you can set a one-way or Bi-directional |
Operation Place | Recommended occasions: Places with low traffic.
Canteens, hotels, office buildings, museums, clubs, subways, bus / train stations, docks, tourist attractions and other places can
be used. |
Characteristics |
1. Spring Driving ;
2. Solenoid ,Power conservation. Electro-magnetic locks remain in “standby mode” until turnstile is activated ;
3. Round corners, beautiful design, high cost.
|
